Controls

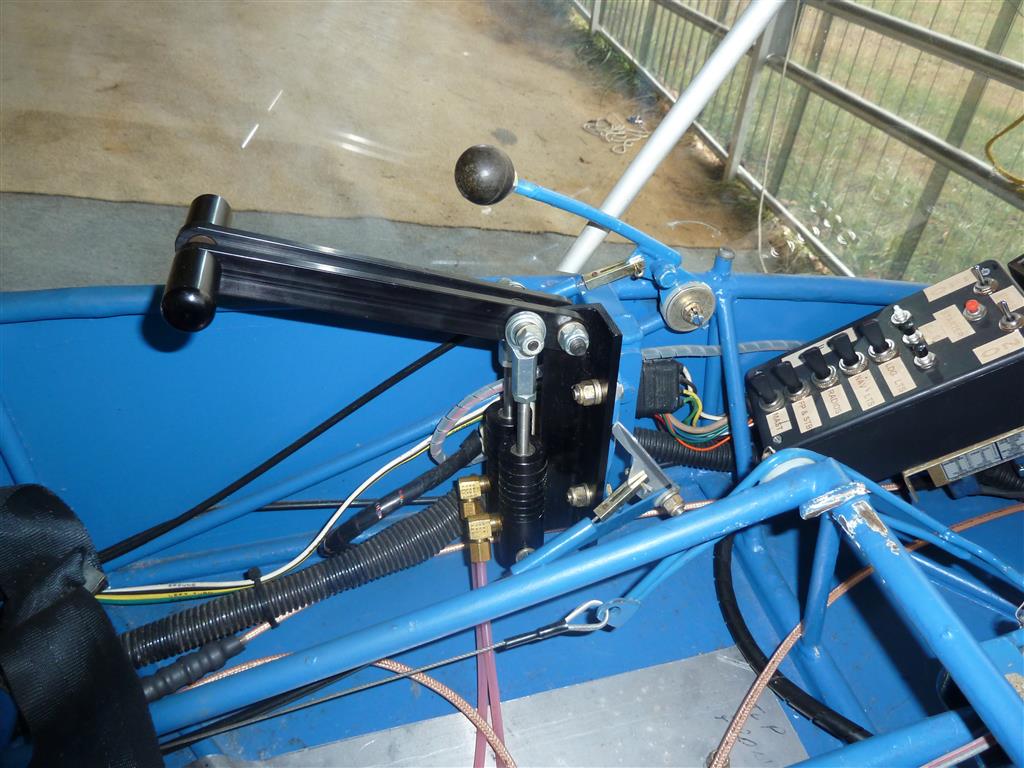

Not much room for toe brakes, and
heel brakes are tricky to fit, so we use hand brakes. Welded in
the bracket during the fuselage repair. Push straight down to
brake. After you use them a time of two, becomes very intuitive.
Choke and bracket at the base of the brake assembly. Switch box
to the right.

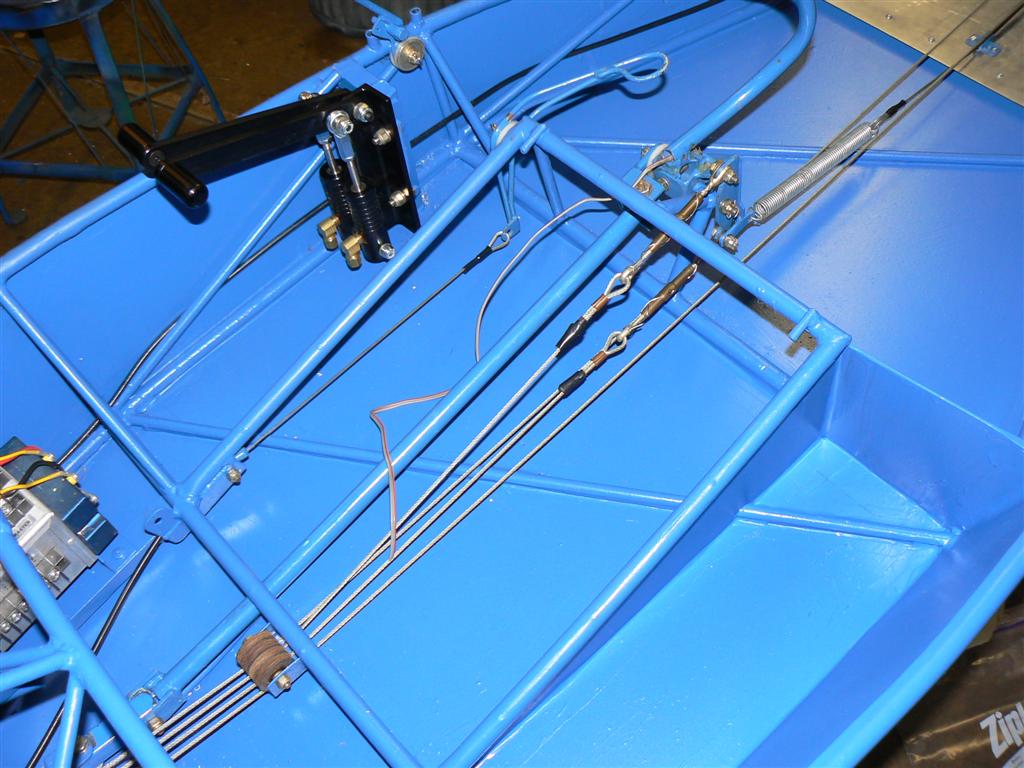

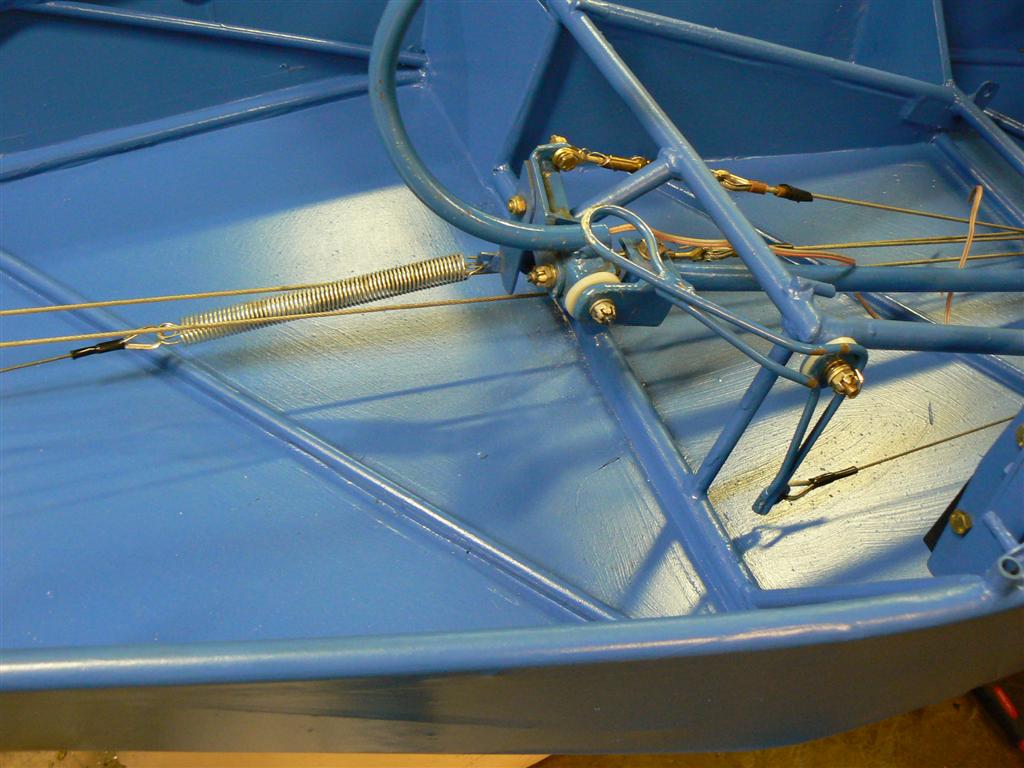

Elevator trim: welded a flat washer
to the seat frame, made a lever attached to a cable attached to
a spring attached to the stick. Works great.

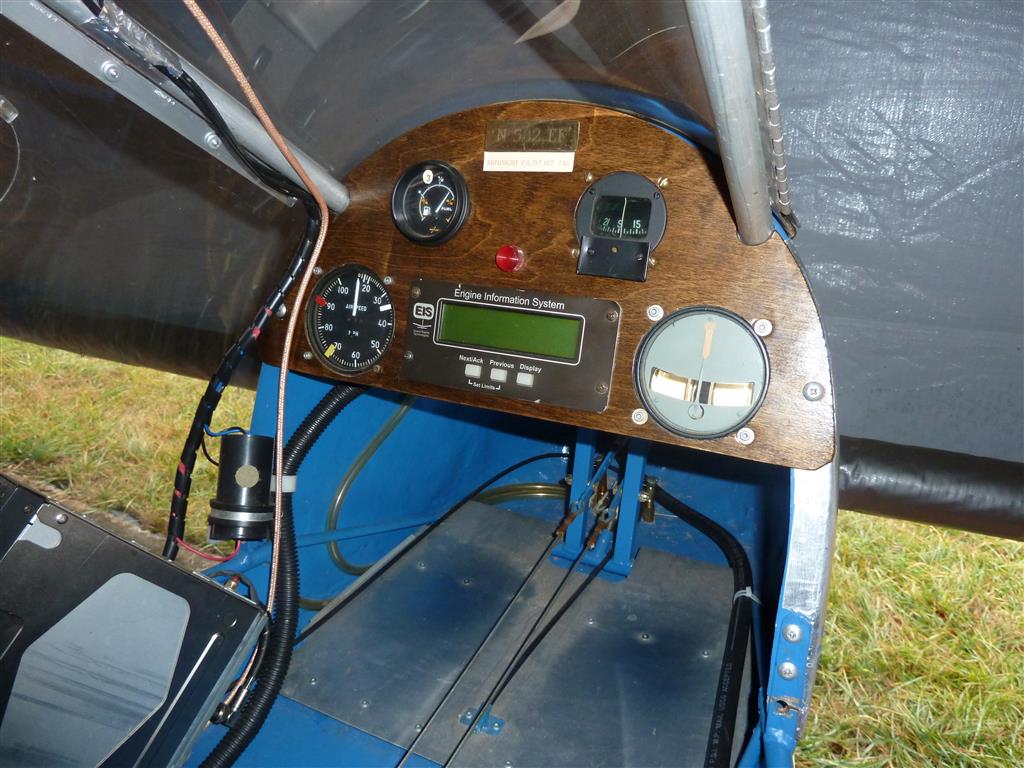

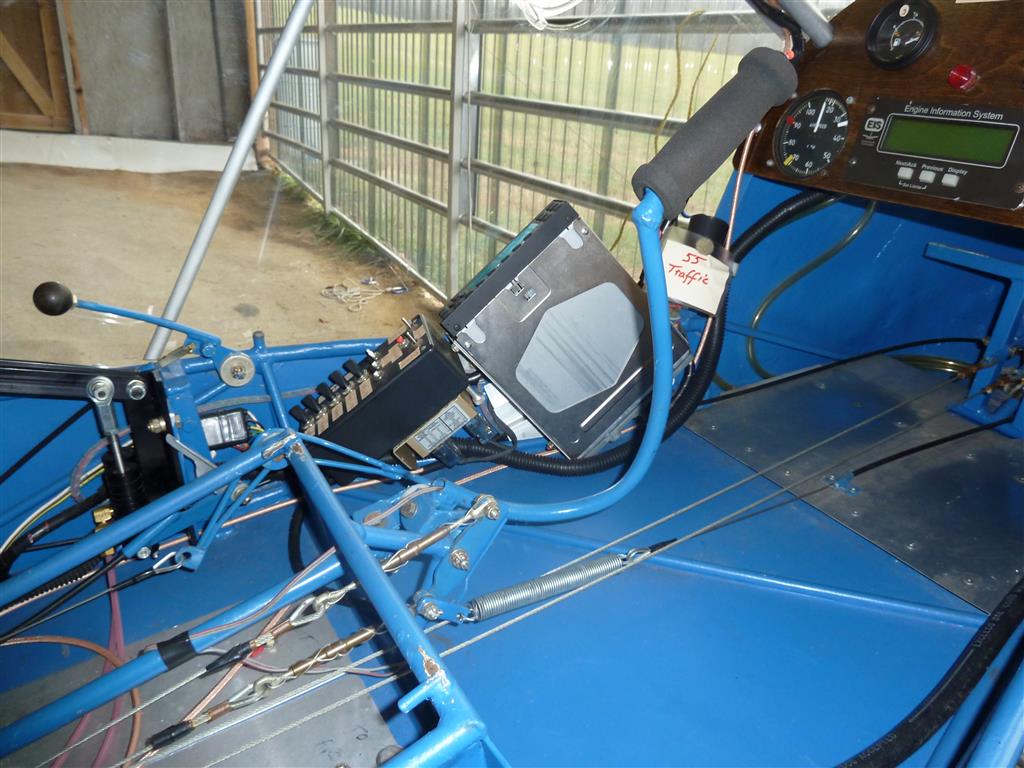

Transponder on the left, the panel
slides up the winshield tubes by removing 2 screws. Maintanance
made simple.
